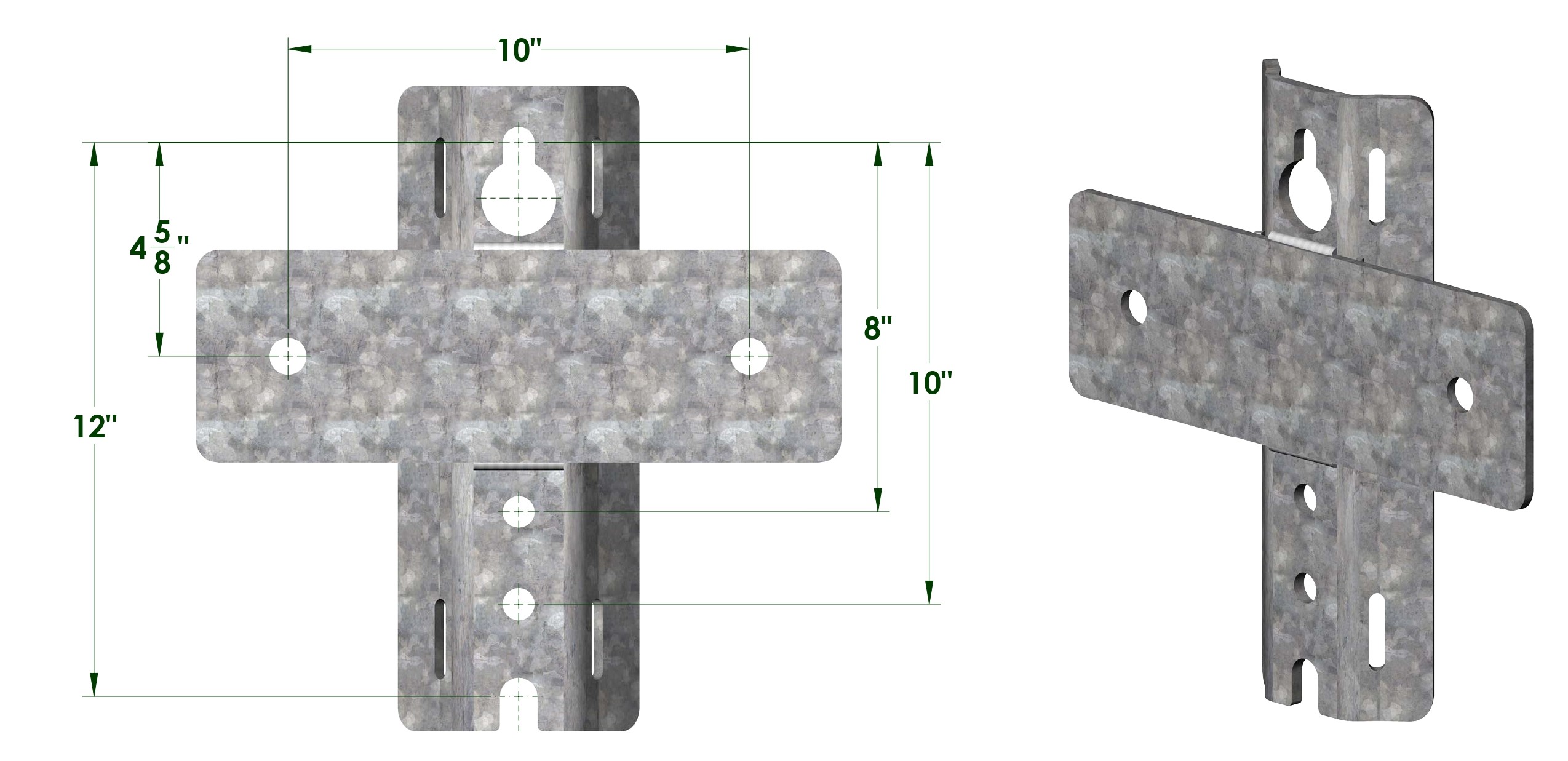

Atropos provides the same center mounts that are used on our crosssarms as stand-alone kits for distribution applications.
| Part Number | Crossarm Size | Mounting Holes | Mounting Hardware |
|---|---|---|---|
| A713-0131 | 3⅝" x 4⅝" | 11/16" | 5/8" |
| A713-0004 | 3⅝" x 4⅝" | 13/16" | 3/4" |
| A713-0005 | 4" x 6" | 13/16" | 3/4" |

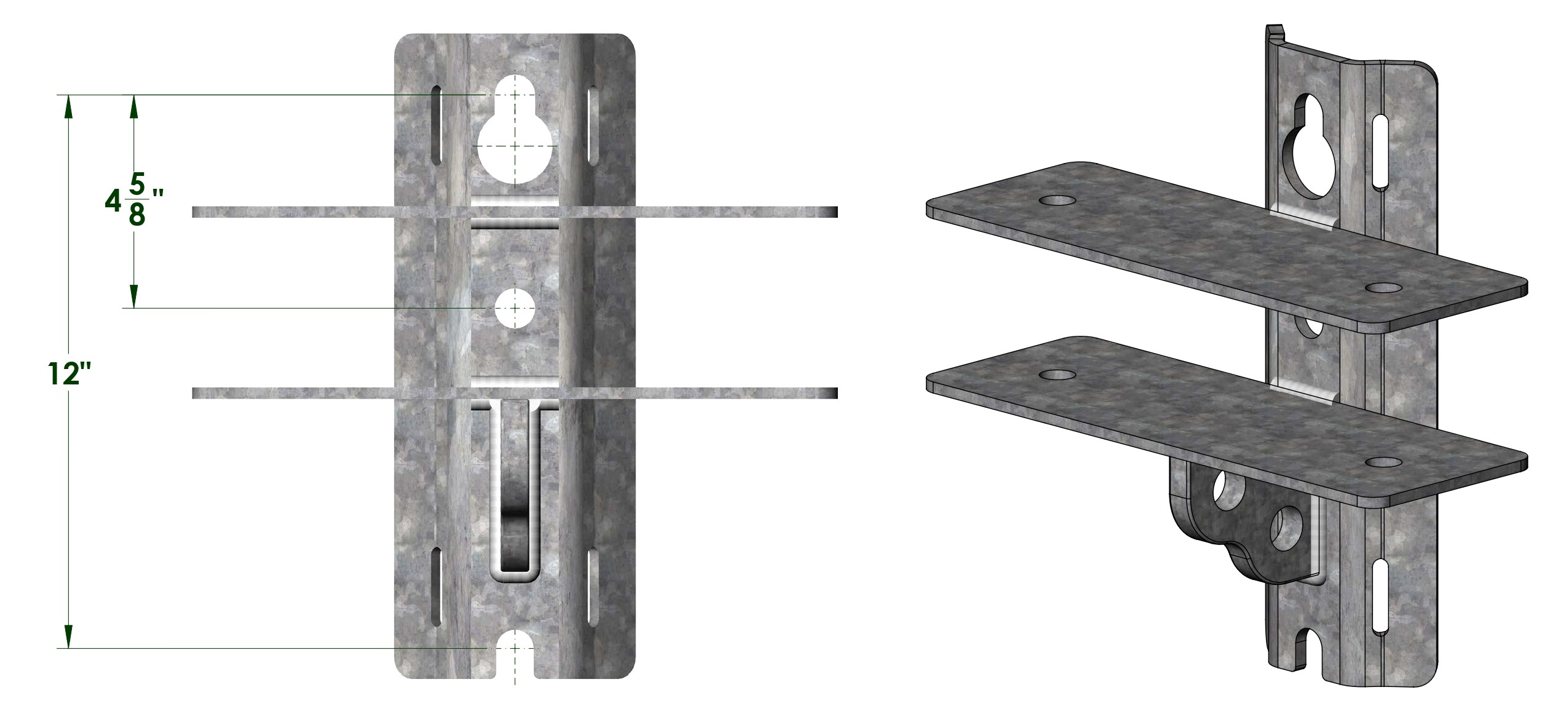

Atropos provides the same center mounts that are used on our crosssarms as stand-alone kits.
| Part Number | Crossarm Size | Mounting Holes | Mounting Hardware | Guy Holes |
|---|---|---|---|---|
| A713-0132 | 4⅝" x 3⅝" | 11/16" | 5/8" | (2) 1" Dia. |
| A713-0001 | 4⅝" x 3⅝" | 13/16" | 3/4" | (2) 1" Dia. |
| A713-0002 | 6" x 4" | 13/16" | 3/4" | (2) 1" Dia. |
Designed specifically for composite crossarms, Atropos Field Drilling Kits ensure clean, accurate holes to account for installation of crush bushings, all without compromising the structural integrety. These kits make on-site customization fast and safe, while maintaining full mechanical and dielectric performances.
Request the Field Drilling Demo Video| Part Number | Description |
|---|---|
| A803-0001 | Field Marking and Drill Bit for 1/2" Dia. Hardware Bushing |
| A803-0002 | Field Marking and Drill Bit for 5/8" Dia. Hardware Bushing |
| A803-0003 | Field Marking and Drill Bit for 3/4" Dia. Hardware Bushing |
| A803-0004 | Package of (10) 1/2" Dia. x 3⅝" Long Hardware Bushing |
| A803-0005 | Package of (10) 1/2" Dia. x 4⅝" Long Hardware Bushing |
| A803-0006 | Package of (10) 1/2" Dia. x 4" Long Hardware Bushing |
| A803-0007 | Package of (10) 1/2" Dia. x 6" Long Hardware Bushing |
| A803-0008 | Package of (10) 5/8" Dia. x 3⅝" Long Hardware Bushing |
| A803-0009 | Package of (10) 5/8" Dia. x 4⅝" Long Hardware Bushing |
| A803-0010 | Package of (10) 5/8" Dia. x 4" Long Hardware Bushing |
| A803-0011 | Package of (10) 5/8" Dia. x 6" Long Hardware Bushing |
| A803-0012 | Package of (10) 3/4" Dia. x 3⅝" Long Hardware Bushing |
| A803-0013 | Package of (10) 3/4" Dia. x 4⅝" Long Hardware Bushing |
| A803-0014 | Package of (10) 3/4" Dia. x 4" Long Hardware Bushing |
| A803-0015 | Package of (10) 3/4" Dia. x 6" Long Hardware Bushing |
